Double-data rate (DDR or DDR1) main memory technologies are developed by the Joint Electronic Devices Engineering Council (JEDEC) for use in servers, workstations, and high-performance portable applications that require deep memory.
Nexus Technology offers high quality and high fidelity interposers, enabling the industry to confidently and accurately gain access to DDR main memory buses for debug and compliance verification. more…
DDR main memory interposers are available in dual-inline-memory-modules of DIMM and SODIMM. Standard modules comprise a series of packages in a standard PCB format with standard connections between the DIMM and the main board. Interposers are available for both component packages and DIMM and SODIMM modules.
|100 Pin DIMM||*||✓||*||*|
|184 Pin DIMM||✓||✓||✓||✓|
|200 Pin SODIMM||*||✓||✓||*|
*If you don’t see what you need, please contact us for the most up to date information.

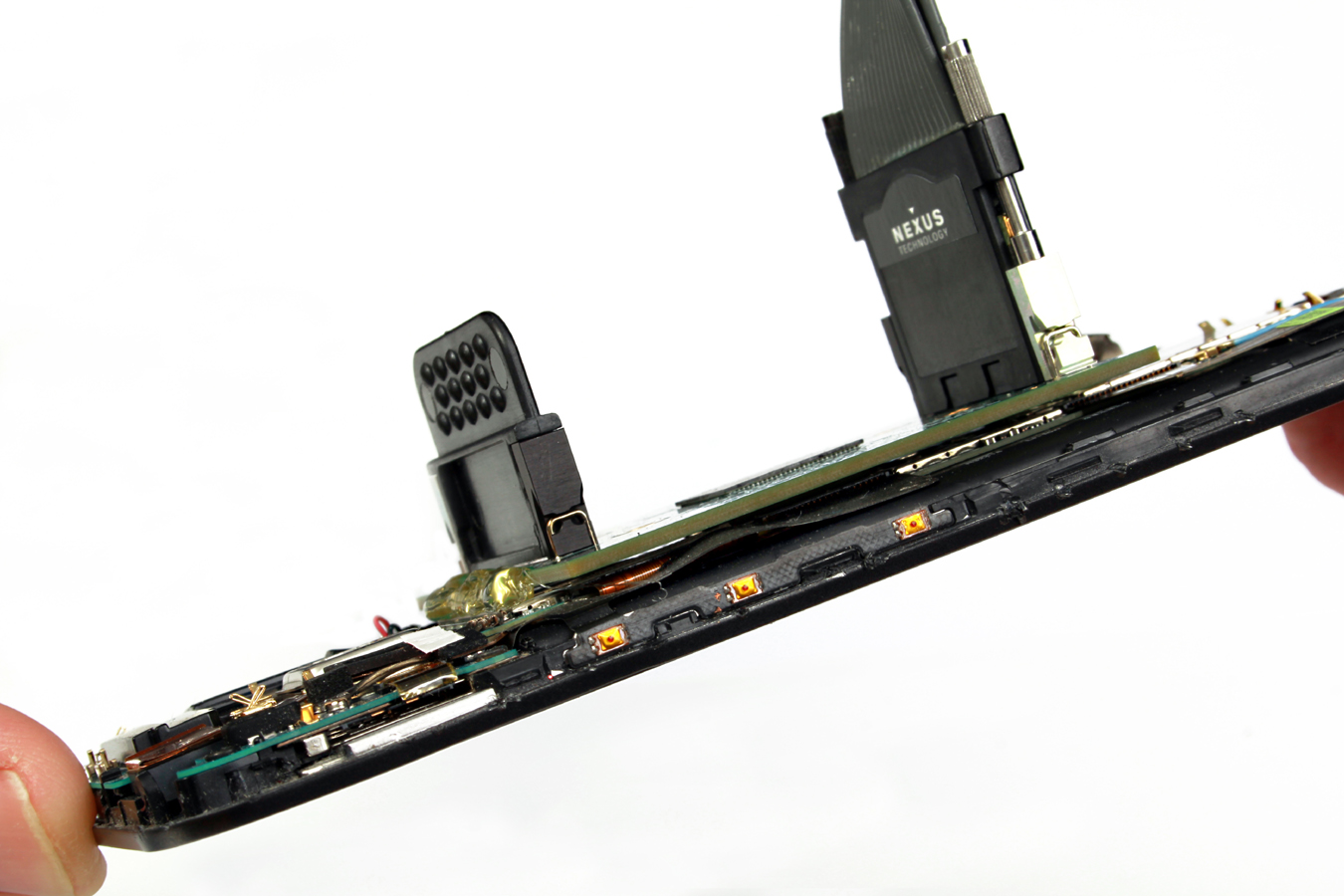

Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality.
More Information on Interposer Types
Logic analysis is performed using a logic analyser interposer to capture memory activity on a logic analyzer. The logic analyzer is then used to debug, analyze, and verify the logic (basic protocol) of your design. Learn more…
