Low power double-data rate third-generation (LPDDR3) mobile memory technologies are developed by the Joint Electronic Devices Engineering Council (JEDEC) for use in handheld devices or applications where low-power and small size is critical.
Nexus Technology offers high quality and high fidelity interposers, enabling the industry to confidently and accurately gain access to LPDDR3 mobile memory buses for debug and compliance verification. … more…
|Package (ChxDb)||EdgeProbe™||Direct Attach||Logic / Compliance||Riser||Component Socket|

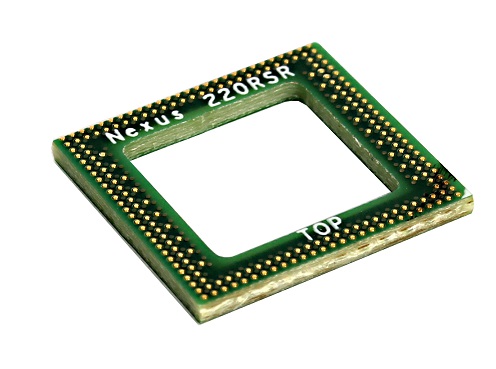

|220 Ball (2×32)||*||✓||*||Yes||Yes|
|221 Ball (1×32)||*||✓||*||Yes||No|
|216 Ball (2×32)||*||✓||✓||Yes||Yes|

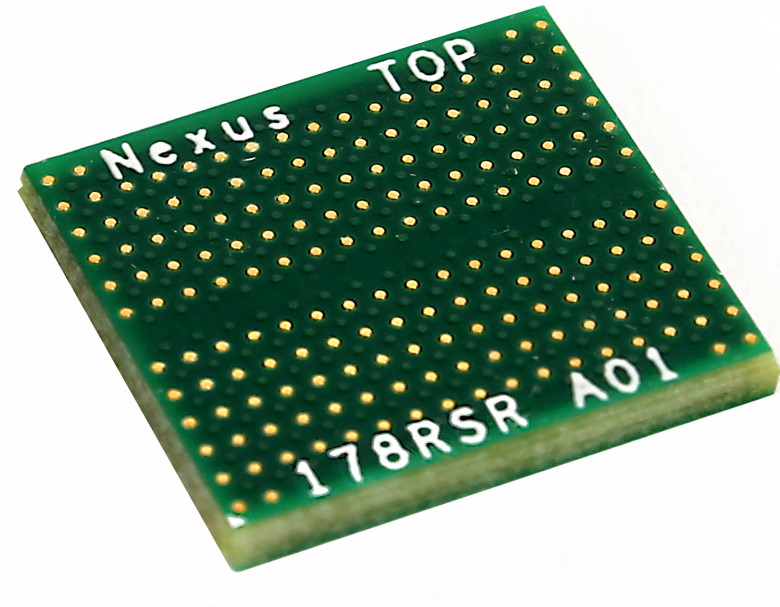

|178 Ball (1×16/1×32)||*||✓||✓||Yes||Yes|
|Custom||Custom designs are also available. Please contact us.|
*If you don’t see what you need, please contact us for the most up to date information.
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality.
More Information on Interposer Types
Electrical analysis is enabled by using either an EdgeProbe, High Density, or Socketed interposer to capture memory activity on an oscilloscope. The oscilloscope is then used to debug, analyze, and verify the analog characteristics of your design. Presenting an accurate representation of the signals under test to the oscilloscope is critical. Nexus interposers provide an unobtrusive interconnect and accurate signal to your oscilloscope. Learn more…
Logic / Compliance Analysis
Logic analysis is performed using a logic / compliance interposer to capture memory activity on a logic or memory analyzer. The logic or memory analyzer is then used to debug, analyze, and verify the logic (basic protocol) of your design. Compliance analysis uses the same interposers to capture activity on a memory analyzer. The memory analyzer is then used to debug, analyze, margin test, performance analyze, and verify the memory protocol. Learn more…
