EdgeProbe™ Technology

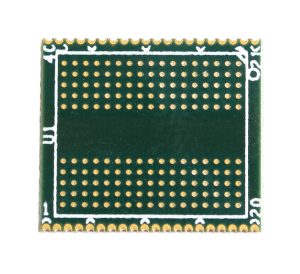

Nexus’ patented EdgeProbe™ designs require a small mechanical footprint by designing the probe points on the edge of the interposer. They are attached directly to the target. Read more…
Software
Oscilloscope de-embedding software filters/removes interposer effects. Please contact Nexus for the appropriate de-embedding software for your interposer.
Product Configuration Table
| Nomenclature | Data Width | Interposer Type | Quantity Included |
|---|---|---|---|
| NEX-GDDR5MCI170SCDSD | x16/x32 | Edgeprobe | 1 |
If your application requires access to all signals probed and there is sufficient mechanical clearance, please view our GDDR5 170 Ball Oscilloscope Socketed Component Interposers.
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Socket | Memory socket | 1 | NEX-SOCKETGDDR5170 |
| Solder Balls | Install solder balls on interposer | 1 | NEX-OPT-SOLDERBALLS-EP |
| Solder Balls | Install solder balls on socket | 1 | NEX-OPT-SOLDERBALLS-SK |
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

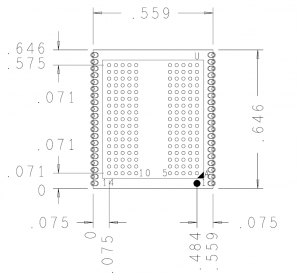

Mechanical Outline
