Compliance Interposer

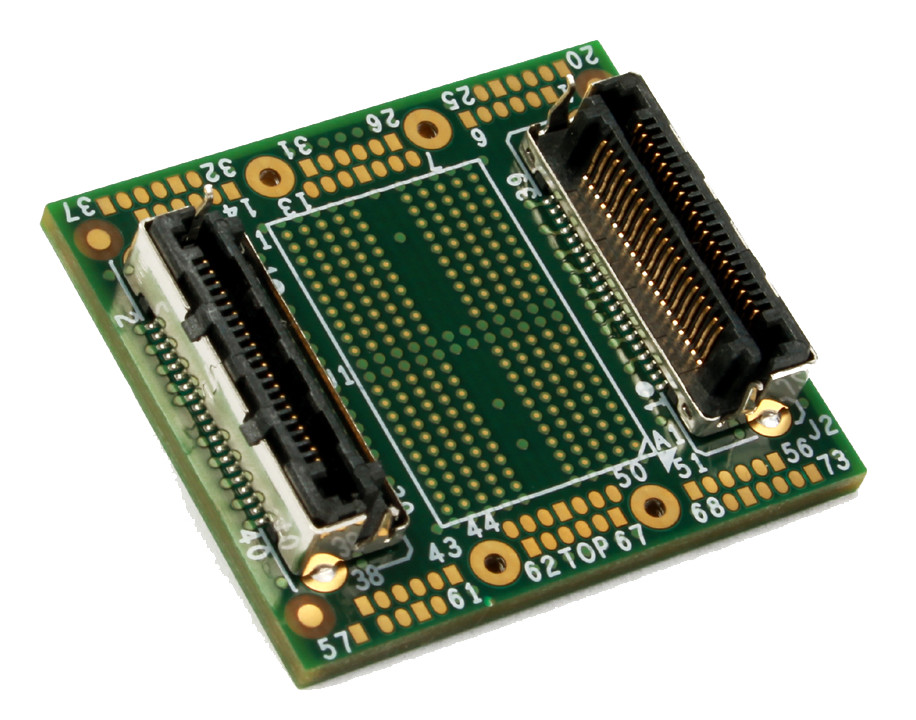

Optimal LPDDR4 validation requires analysis of the LPDDR4 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative of the signals on the target. Nexus Technology Memory Compliance Analyzer component interposers allow for Compliance Analysis of the LPDDR4 signals extremely close to the memory component’s… more…
Patented Socket Design
Nexus Technology’s patented, high-bandwidth, component interposer sockets greatly simplify the process of attaching the interposer to your target and make for a reusable interposer. Once the custom target socket is installed on the target, the interposer can simply be inserted into the custom target socket or be removed from the socket easily by hand – enabling the interposer to be used on multiple targets or quick swapping of logic analyzer and oscilloscope interposers on the same target.
Product Configuration Table
Nomenclature | Description | Alt. Order Number |
---|---|---|
LP4-DQ-CDA-200 | LPDDR4 200-ball MA5100 Series Analyzer Interposer w/oscilloscope probe points, balled | NEX-LP4MCI200CA |
LP4-DQ-CDA-200-CSK | LPDDR4 200-ball MA5100 Series Analyzer Interposer w/oscilloscope probe points and LP4-CSK-200 memory socket installed, balled | NEX-LP4MCI200CA-SK |
LP4-RSR-200 | LPDDR4 200-ball Riser, balled | NEX-RSRLPDDR4200 |
LP4-TSK-200 | LPDDR4 200-ball Target Socket, balled | NEX-LP4-200BGASKBA |
LP4-CSK-200 | LPDDR4 200-ball Memory Socket, not balled1 | NEX-SOCKETLPDDR4200 |
1P/N LP4-CSK-200 does not include solder balls. These may be added or included when installed on the interposer. Please contact us for more information.
Mechanical Outline
Compatible Memory Analyzers
Product | Details |
---|---|
MA5100 Series Memory Analyzer | Memory analyzer supporting LPDDR4 and LPDDR3 performance, margins and capture up to LPDDR4-4267 (2.4GHz) and LPDDR3-2133 (2.4GT/s capable) with 1G-Sample acquisition depth, ClockSafe™ and Sixteen Smart Frequency Analysis. |
