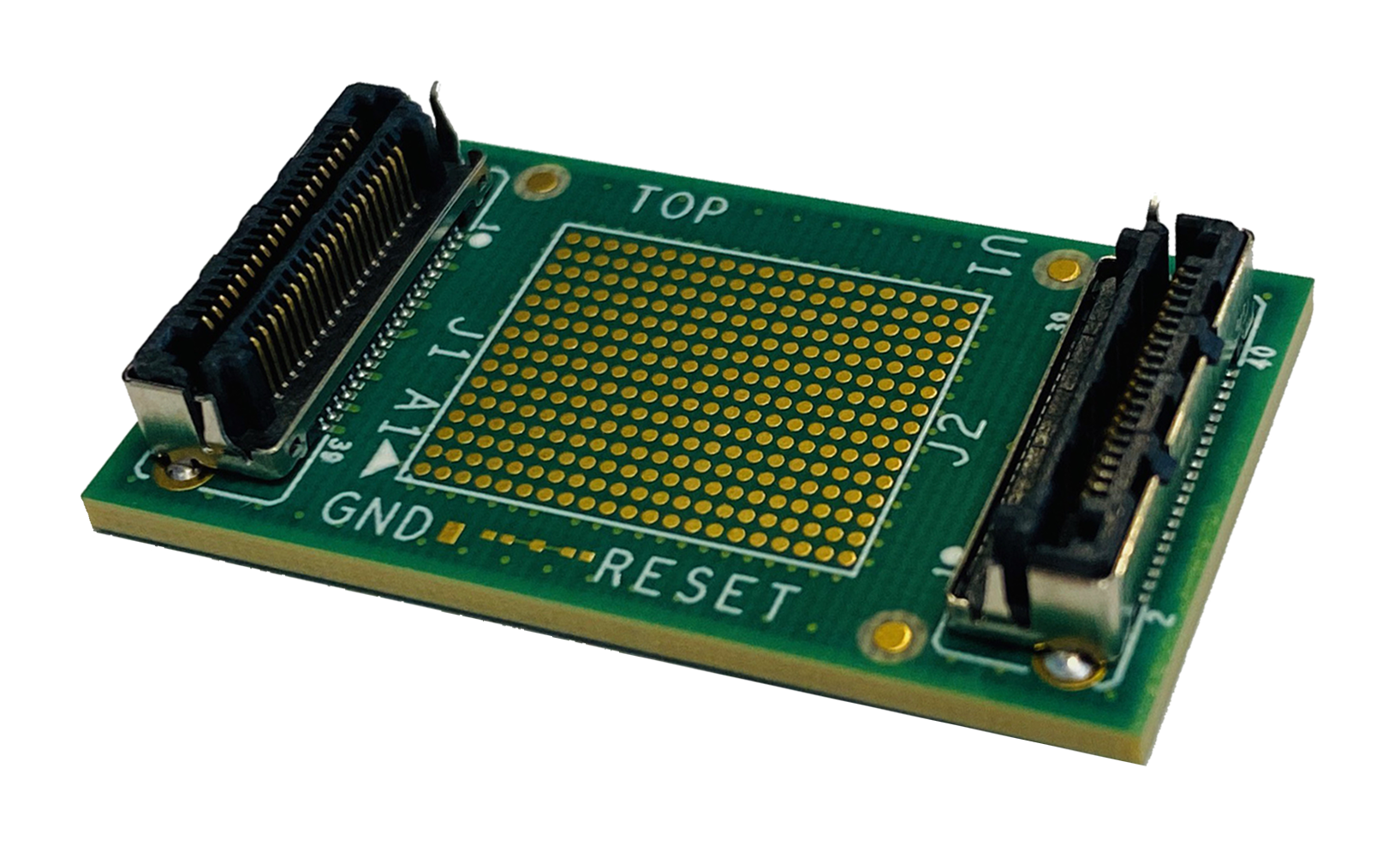

Compliance Interposer
Optimal LPDDR5 validation requires analysis of the LPDDR5 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative of the signals on the target. Nexus Technology Memory Analyzer component interposers allow for Compliance Analysis of the LPDDR5 signals extremely close to the memory component’s… more…
Product Configuration Table
| Nomenclature | Data Width | Interposer Type | Quantity |
|---|---|---|---|
| NEX-LP5MCI315CA | 2 x16 | Direct Attach | 1 |
| NEX-LP5MCI315CA-SK | 2 x16 | Direct Attach/Socketed | 1 |
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Riser | Riser elevates interposer .050″ | 1 | NEX-RSRLPDDR5315 |
| Socket | Memory socket | 1 | NEX-SOCKETLPDDR5315 |
Mechanical Outline

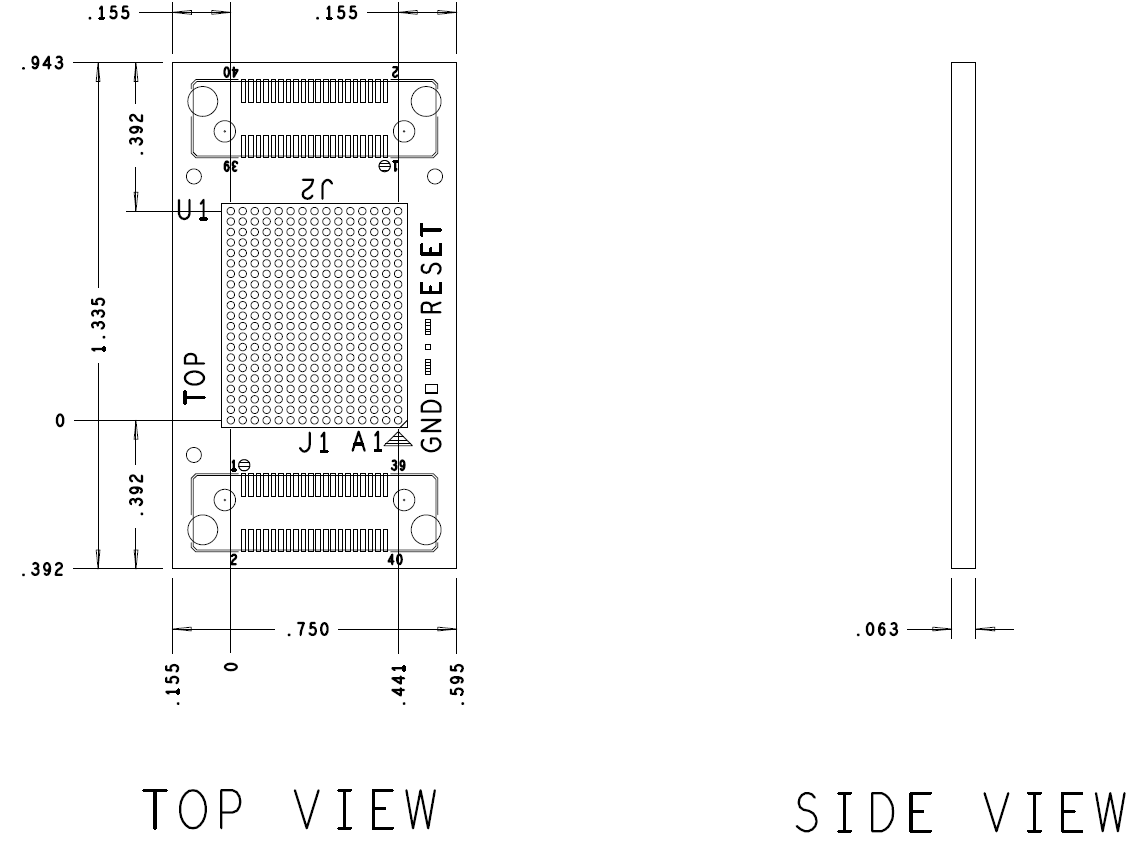

NEX-LP5MCI315CA

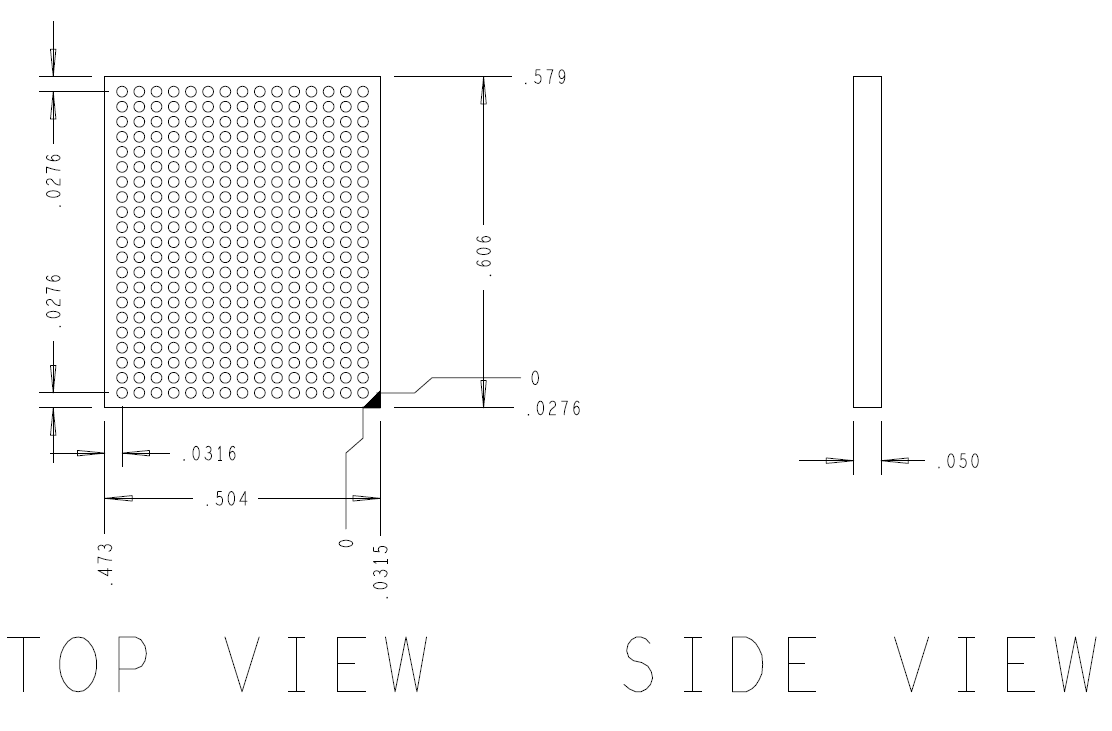

NEX-RSRLPDDR5315
Compatible Memory Analyzers
| Product | Details |
|---|---|
 MA5100 Series Memory Analyzer |
Memory analyzer supporting LPDDR4 and LPDDR3 performance, margins and capture up to LPDDR4-4267 (2.4GHz) and LPDDR3-2133 (2.4GT/s capable) with 1G-Sample acquisition depth, ClockSafe™ and Sixteen Smart Frequency Analysis. |
